1.5 Part Names and Their Functions
1-14 im2520f
Introduction Chapter 1

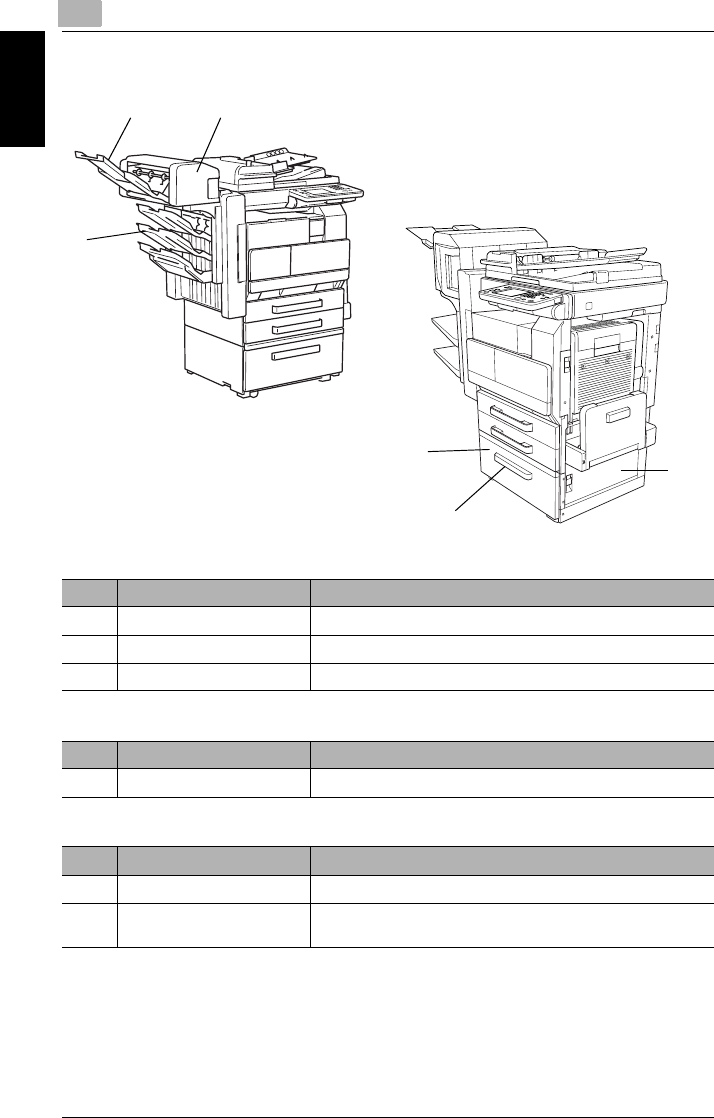

Large Capacity Cabinet (9218)
Additional Bin Kit (ZC3500060)
Saddle Kit (9214)
No. Part Name Description
14 3rd paper drawer (LCC) Holds up to 2,500 sheets of paper.
15 Lower-right door Opened when clearing paper misfeeds.
16 Drawer release button Pressed when loading paper.
No. Part Name Description
17 3rd paper output tray Collects printed pages.
No. Part Name Description
18 Paper output tray Collects printed pages.
19 Misfeed-clearing door Opened when clearing paper misfeeds that occurred in the
finisher.
15
18
17
16
19
14
