8.4 When a Paper Misfeed Occurs

8-26 im2520f

Touch Panel Messages Chapter 8

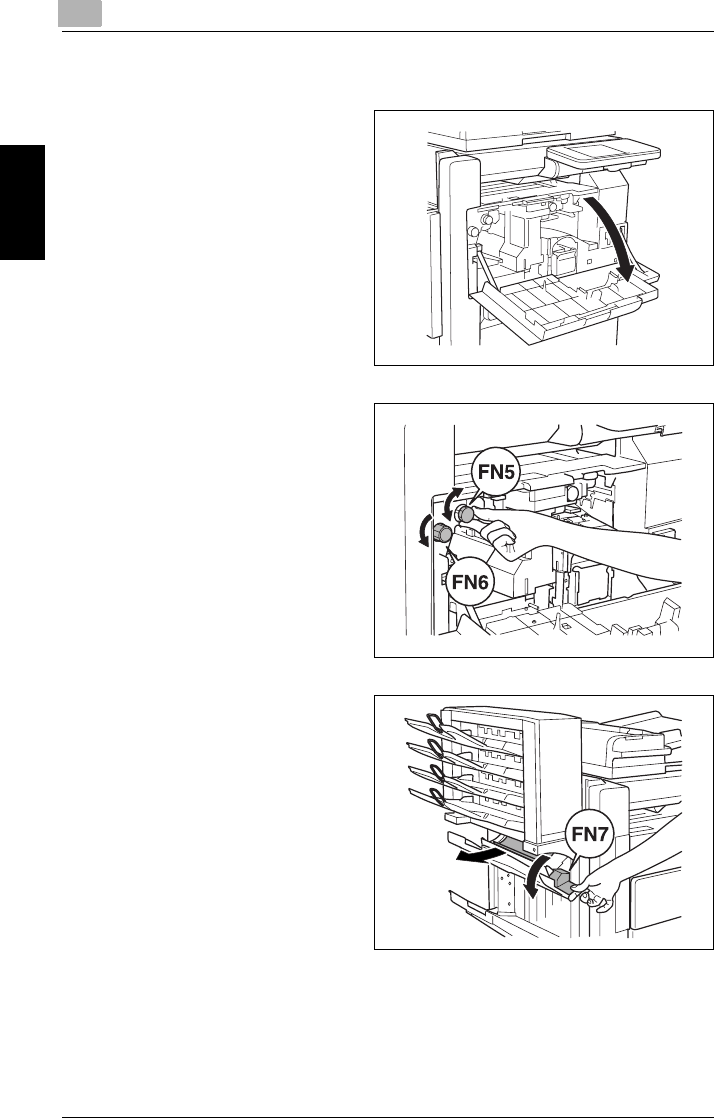

To clear a paper misfeed in the mail bin kit

1 Open the front door.

2 Turn dial “FN5” or dial “FN6”, and

then pull out any misfed paper.

3 While pressing down lever “FN7”,

pull out any misfed paper.
